Reinforced PP Concrete Industrial Flooring Concrete Reinforcement Fiber
Industrial Flooring Concrete Reinforcement Fiber
,BTTG Concrete Reinforcement Fiber
,BTTG PP Reinforced fiber
Polypropylene Macro Synthetic FIBER Reinforced Concrete Industrial Flooring Application
1, Description:
ELT-TWIST 54 Made of 100% virgin copolymer / polypropylene micro fibers, consist of twisted-bundles of monofilament fibers and used as
a primary structural concrete reinforcement.
ELT-TWIST 54 Macro synthetic fibers provide concrete with enhanced durability and toughness compared to traditional mesh.
ELT-TWIST 54 Its high performance structure yields maximum durability with no corrosion, magnetic and acid/alkali risk.

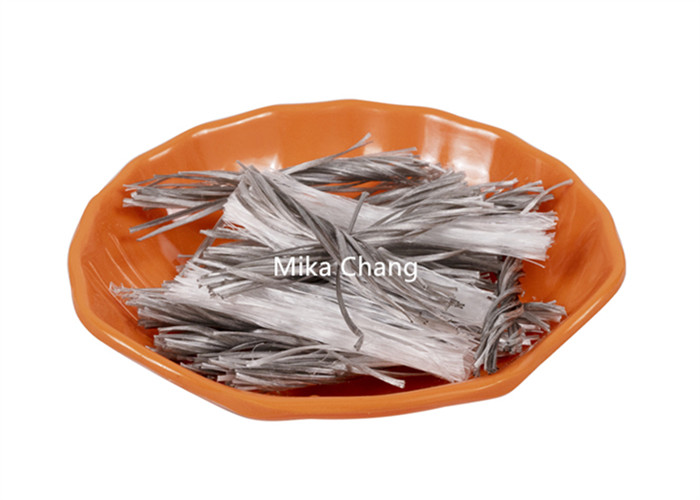

PMFT-A: 100% Twist Fiber PMFT-B: Hybrid(PP Twist Fiber Mix with PP Fibrillated Fiber)
2,Functions
- Saves time from handling the steel mesh on the site.
- Significantly reduces application times and direct labor expenses.
- Due to being non-corrosive significantly reduces slab thickness.
- Prevention of corrosion increases service life and reduces maintenance costs.
- Eliminates labor related risks and removes potential hazards from the work site related to steel mesh and steel fibers.
- Does not damage construction equipoment as steel fiber.
- Reduces costs of storage and due to not having a shelf life can be stored for long-term.
- Overall cost is lower than steel mesh and steel fibers.
2, Production Process
3,Specification:
| Density(g/cm 3 ) | 0.91 +/- 0.01 | Equivalent Dia(mm) | 0.3±0.05 |
| Shape | twist | break tensile Ratio(%) | 8-15 |
| Crack Ratio (%) | 20+/-5 | Melting point ( C. Deg) | 160-170 |
| Tensile Strength (Mpa) | 500 to 800 | Water Absorption | Negligible |
| Elastic Modulus (Mpa) | >3500 | Resistance to acid & alkali | Excellent |
| Material | Virgin Copolymer/Polypropylene | ||
| Length(mm) | 38/48 /54 or as per your request | ||
| Dosage rates will vary depending upon the reinforcing requirements and can range from 2kg/m³ to 5 kg/m³ | |||

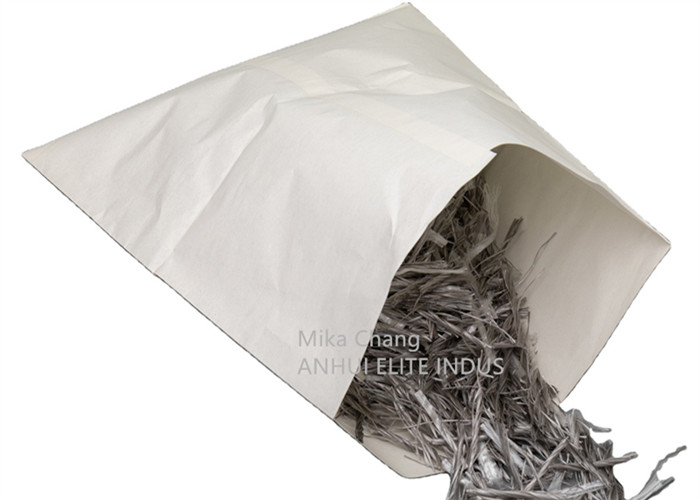

4, Packing:
| Shape | Inner Packing(PE Film Bag) | Outer Packing(Plastic Woven Bag) | 20’gp | 40’HQ |
| Twist | 0.5/1.0kg | 10kg | 5500kg | 12000kg |
| Inner Packing(Water Soluble Paper Bag) | Outer Packing (Carton) | |||
| 0.5/1.0kg | 10kg | 4000kg | 9000kg | |
| Other Packing Can As Per Your Request | ||||
5, MIXing and Dosage
ELT-TWIST can be added directly to the concrete mixing system, during or after the batching of the ingredients and mixed at high
speed for four to five minutes. Additional mixing does not adversely affect the distribution or overall performance of ELT-TWIST54 macrofiber.
The addition of ELT-TWIST 54 Macro Fiber at the recommended dosage rates to a given mix will decrease the slump; however, additional water
should not be added. Only a water reducing admixture should be used to adjust concrete to the desired workability required for placement.
Doses of ELT-TWIST 54 synthetic macro fibers varies between 2,5 kg/m3 and 5 kg/m3 depending on engineering requirements of the projects.
Homogeneous mixture is obtained by adding the fibers to the aggregate band at the batching plant or mixing at the site to the truck.
It is recommended to to add fibers after plasticizer additives and mix for at least 4 to 5 min. at high speed.
6, Application:
- Field Concrete and Industrial Floors
- Coastal Structures & Ports
- Mining
- Tunnel Applications
- Residential Buildings
- Parking Lot Flooring
- Pre-cast and Prefabricated Structures
- Water Structures
- Concrete Pavements
7,Our Mainly Product and Production Capacity as below:
|
Main Item
|
Capacity/Annual
|
||
|
Polypropylene Fiber (PP Fiber)
|
15000mts
|
||
|
Polyester Fiber(PET Fiber)
|
6000mts
|
||
|
Polyvinyl Alcohol Fiber( PVA Fiber)
|
30000mts
|
||
|
Polyacrylonitrile Fiber(PAN Fiber)
|
6000mts
|
||
|
Naphthalene Formaldehyde Sulphonate
|
300000mts
|
||
|
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)
|
150000mts
|
||
|
Foam Agent
|
30000mts
|
-
