Polypropylene Biaxial Geogrid BX1100 / BX1200 For Subgrade Reinforcement

China Polypropylene Biaxial Geogrid BX1100 / BX1200 For Subgrade Reinforcement supplier
Polypropylene Biaxial Geogrid BX1100 / BX1200 For Subgrade Reinforcement supplier Polypropylene Biaxial Geogrid BX1100 / BX1200 For Subgrade Reinforcement supplier Polypropylene Biaxial Geogrid BX1100 / BX1200 For Subgrade Reinforcement supplier

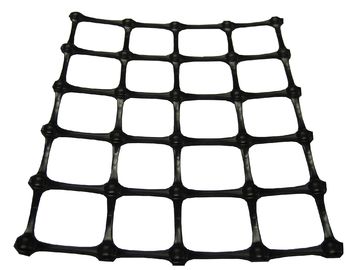

Large Image :  Polypropylene Biaxial Geogrid BX1100 / BX1200 For Subgrade Reinforcement

Product Details:

Place of Origin: Anhui,China
Brand Name: Elite-Indus
Certification: CE ISO
Model Number: EltGrid-PPBG

Payment & Shipping Terms:

Minimum Order Quantity: 5000M2
Price: Negotiation
Packaging Details: Width 3.95m X Length 50M Per Roll
Supply Ability: 100000M2/Day
Contact Now
Detailed Product Description
Material: PP Tensile Strength: Bx1100 Bx1200
Width: 3.95M Length: 50M
Minimum Carbon Black %: 2 Standard: ASTM D
Application: Subgrade Reinforcement

Polypropylene Biaxial Geogrid BX1100 / BX1200 For Subgrade Reinforcement



Description:



EltGrid-PPBG serial product is an equivalent biaxial geogrid to BX1100 and BX1200. Our product is an integrally formed structure,which especially designed for soil stabilization and reinforcement applications. EltGrid-PPBG geogrid is manufactured from Polypropylene,from the process of extruding,longitudinal stretching and transverse stretching.



It is have High tensile strength at both longitudinal(MD)and transverse(TD)direction.it makes soil reinforced with its excellent structure stability and strong mechanical interlock performance.



Applications:



Base reinforcement

Subgrade reinforcement

Slope reinforcement

Embankment stabilization



Specification:



No. Index Properties Test Method PPBG1100 PPBG1200
1 Polymer _ PP
2 Minimum Carbon Black % ASTM D4218 2
3 Tensile Strength @ 2% Strain MD kN/m ASTM D6637 4.1 6
Tensile Strength @ 2% Strain TD kN/m 6.6 9
4 Tensile Strength @ 5% Strain MD kN/m 8.5 11.8
Tensile Strength @ 5% Strain TD kN/m 13.4 19.6
5 Ultimate Tensile Strength MD kN/m 12.4 19.2
Ultimate Tensile Strength TD kN/m 19 28.8
6 Strain @ Ultimate Strength % 13 13
  Structural Integrity
7 Junction Efficiency % GRI GG2 93 93
8 Flexural Rigidity mg-cm ASTM D7748 250,000 750,000
9 Aperture Stability m-N/deg COE Method 0.32 0.65
  Dimensions
10 Aperture Dimensions MD mm _ 26 26
Aperture Dimensions TD mm _ 35 35
11 Minimum Rib Thickness MD mm ASTM D1777 1.2 2
Minimum Rib Thickness TD mm 1 1.5
12 Roll Width m _ 3.95 3.95
13 Roll Length m _ 50 50
14 Roll Weight Kg _ 44 58
